Spindle
6 kW
Tool Storage
64 positions
Price
£28,890

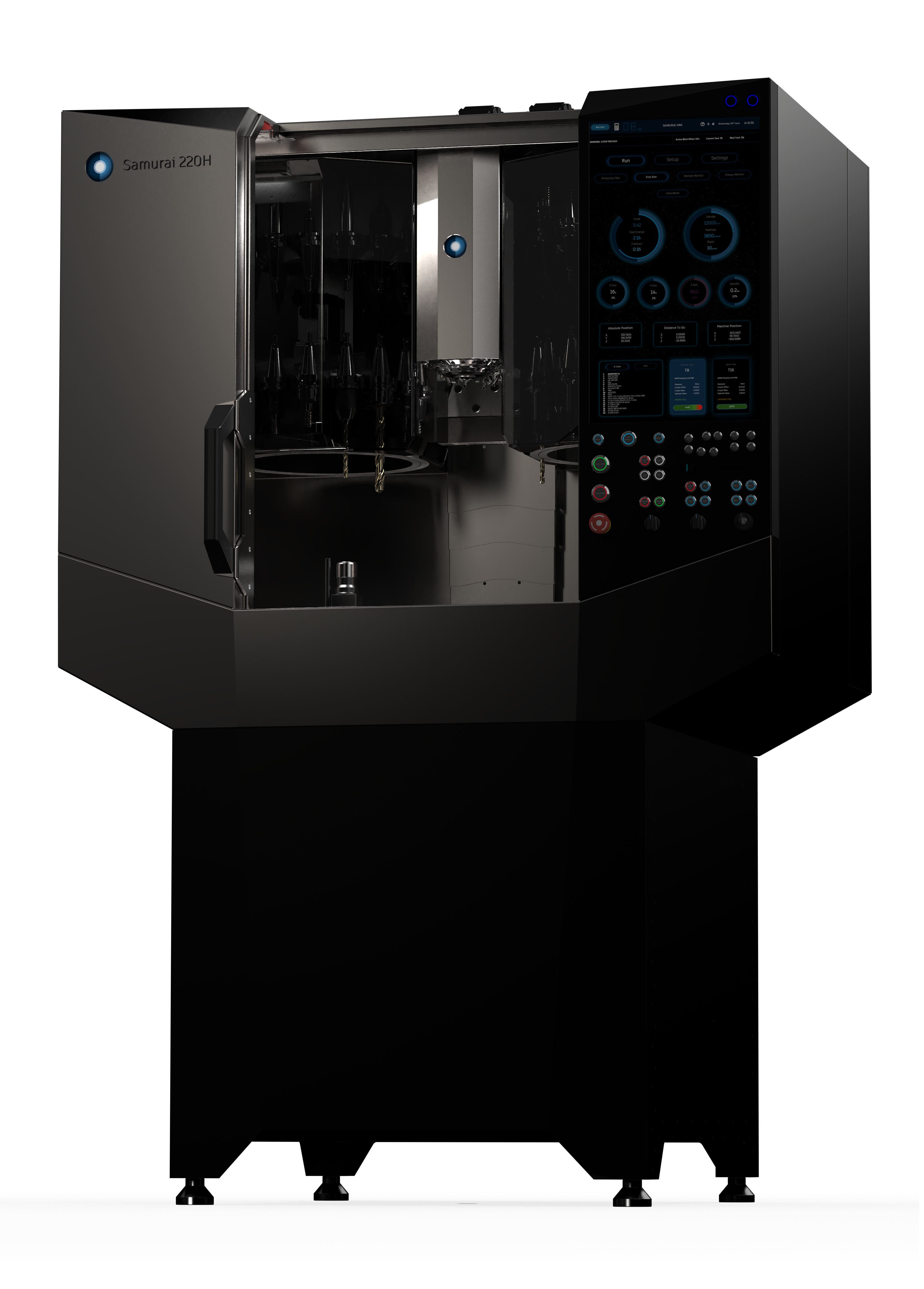

Welcome to the first machine tool featuring the Samurai Steel® Foundation
The 220H was created to serve the small component machining industry, in particular the rise of humanoid robotics. We observed that current machine tools are either too large and expensive or too small, lacking rigidity and features for machining small precision components for industry. The reason for this was not a lack of demand but a fundamental limitation in the Cast Iron machine tool design. To achieve a high stiffness for high material removal rates in a material with high damping, machines had to be made a certain size which drove the cost.
Our material breakthrough allows us to shrink the machine down while maintaining high static and dynamic rigidity required to achieve high material removal rates, mirror surface finishes and long tool life. These 3 factors are what separate the Samurai 220H from all other machines in its size class, making it suitable for industry.
Whether you are a startup, machine shop or OEM, the Samurai 220H is your gateway to the future of small component manufacturing – Samurai MT.
Exceeding your Machining Expectations
Coming Soon
Specification Overview
Spindle Power
6 kW
Rapid Traverse
50 m/min
Positioning Resolution
0.1 µm
Working Envelope (X×Y×Z)
400×240×360 mm
Machine Dimensions (W×D×H)
1180×920×1980 mm
Machine Mass
1,020 kg
The most advanced BT30 tool changer in the world, is also the most affordable
64
Tool capacity
0.5s
Tool to tool
0.9s
Chip to chip
Smallest Machine. Largest Tool Capacity.

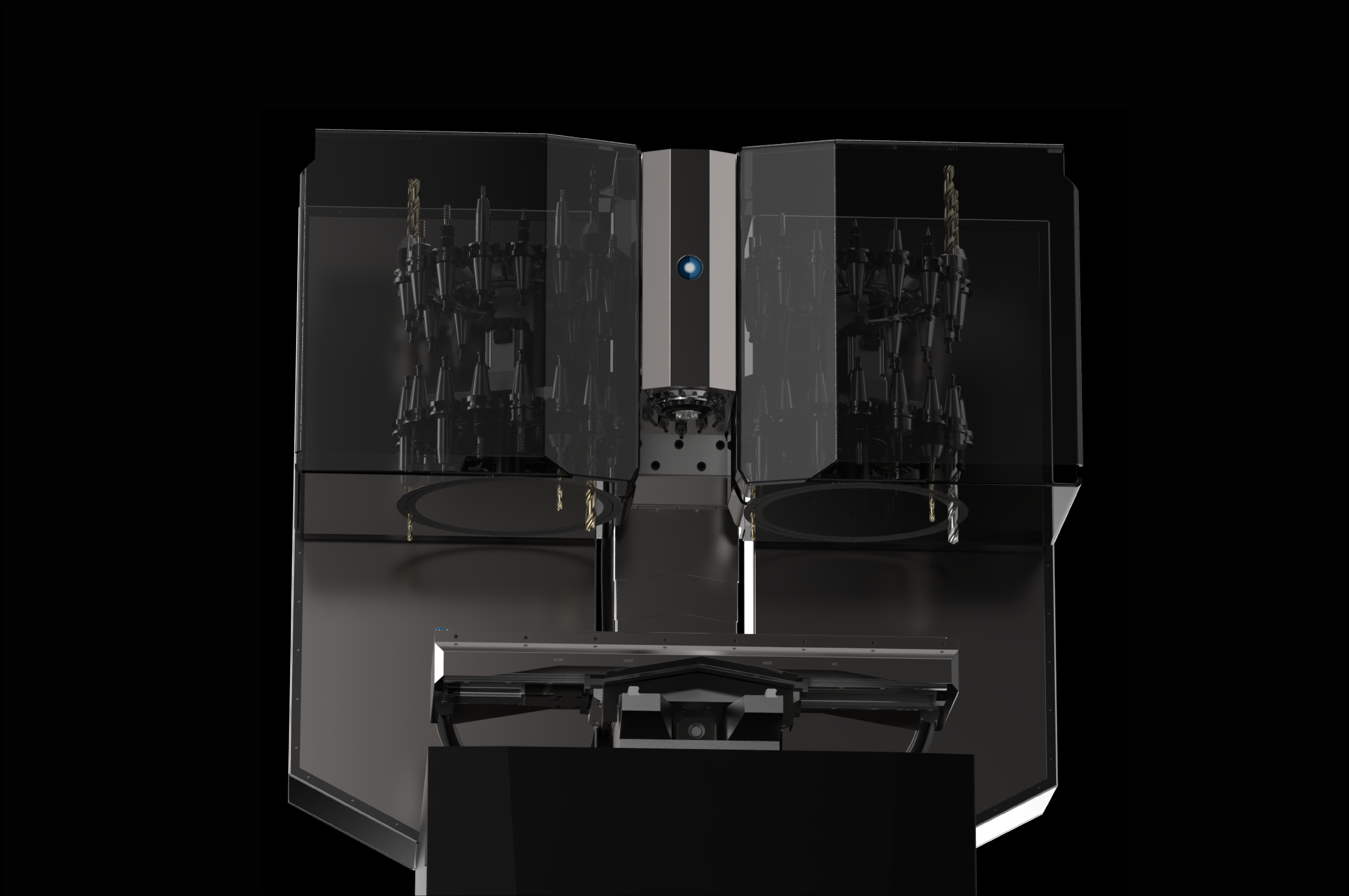

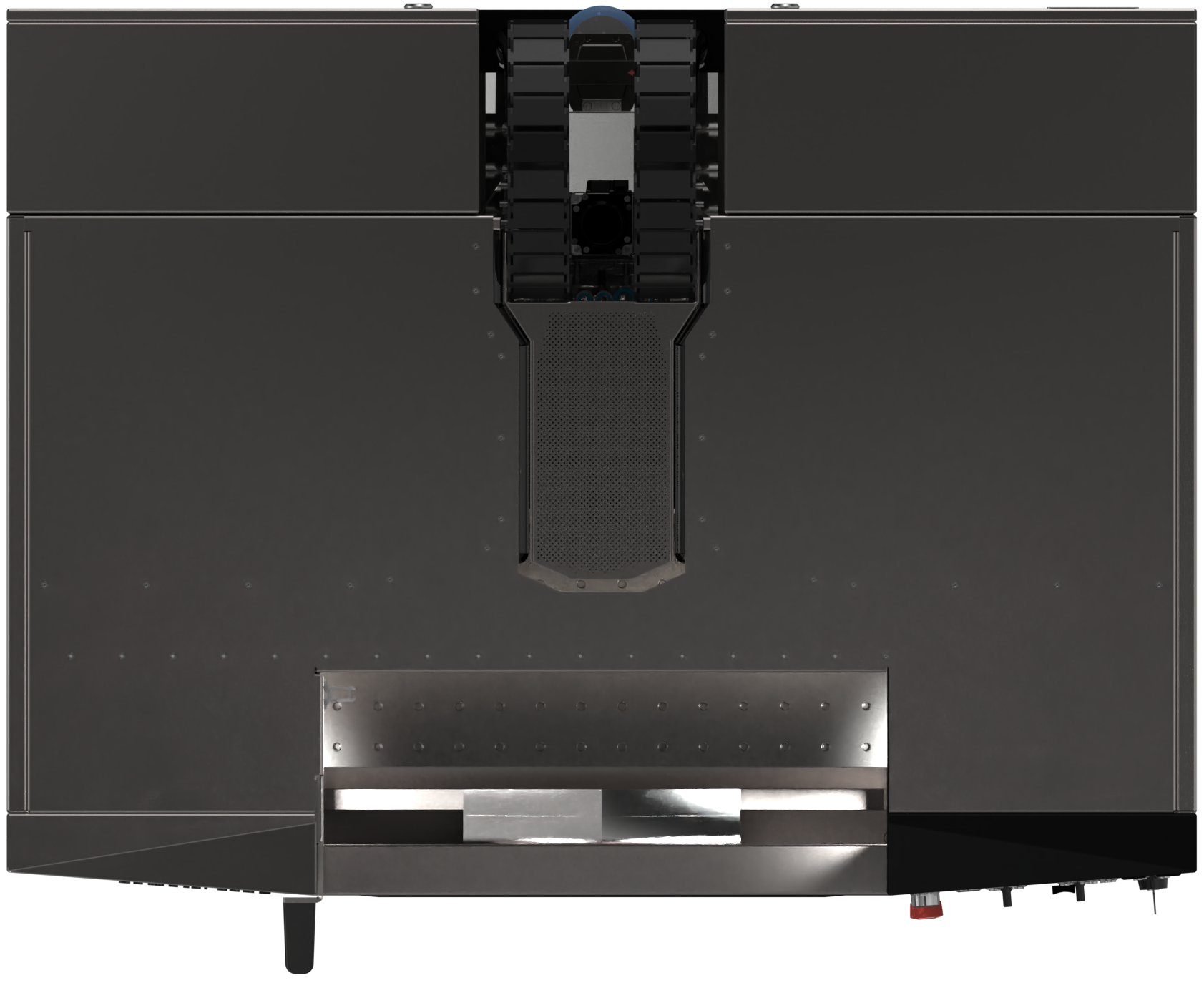

The frame material innovation created a cascading need to rethink the entire machines design. There is no point having a highly capable machine with a slow or low capacity tool changer. This led to the development of the Samurai Type 1 ATC. Its difference lies in the way it compacts the toolholder forks as much as possible, while only moving one tool per tool change.

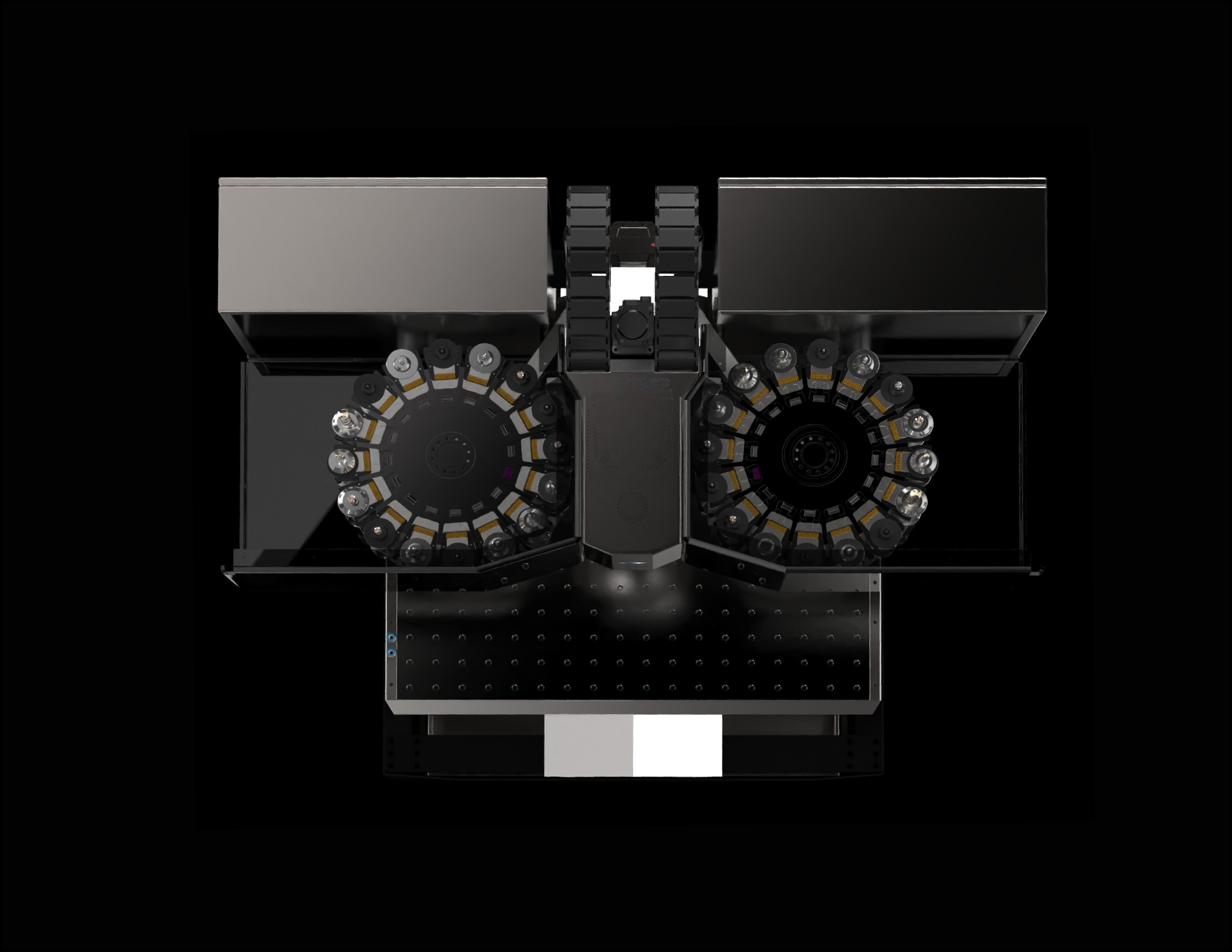

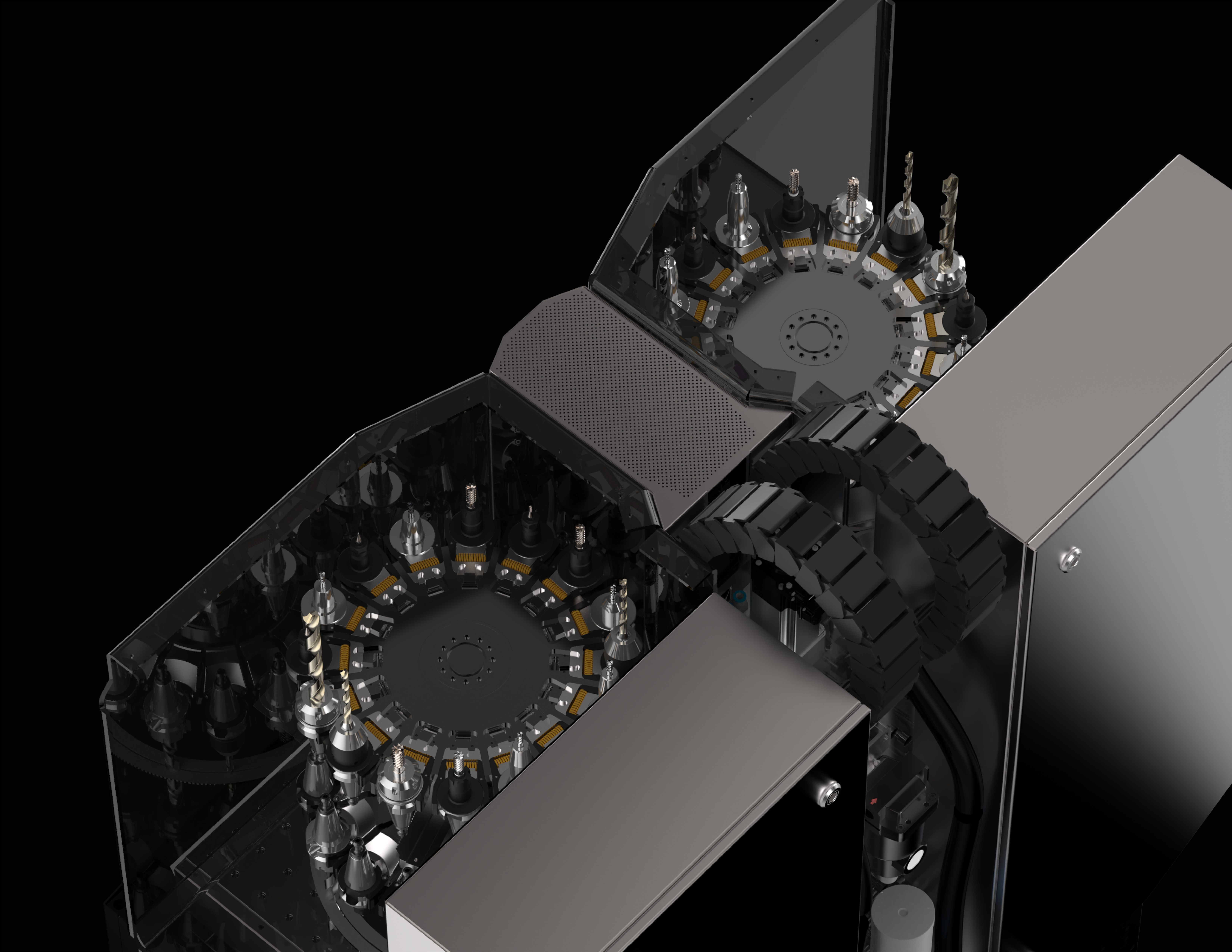

By splitting the tool changer into 4 individually servo driven carousels, the 220H is capable of not only the largest tool capacity but also the highest speed. A tool change only requires movement of an individual tool, rather than the entire carousel; this enables the fastest tool changing times in the world.
Calling the furthest stacked tool takes a maximum of 5 seconds to reach the spindle, keeping your setup times limited.
With 64 capacity, you can design a tooling system for production or prototyping, depending on your needs. Keep duplicate tools to run lights out production or store a variety to remove tool setup times.
With an all metal design and ALT up to 5 million cycles, you can count on the Type 1 ATC to meet all your machining needs.

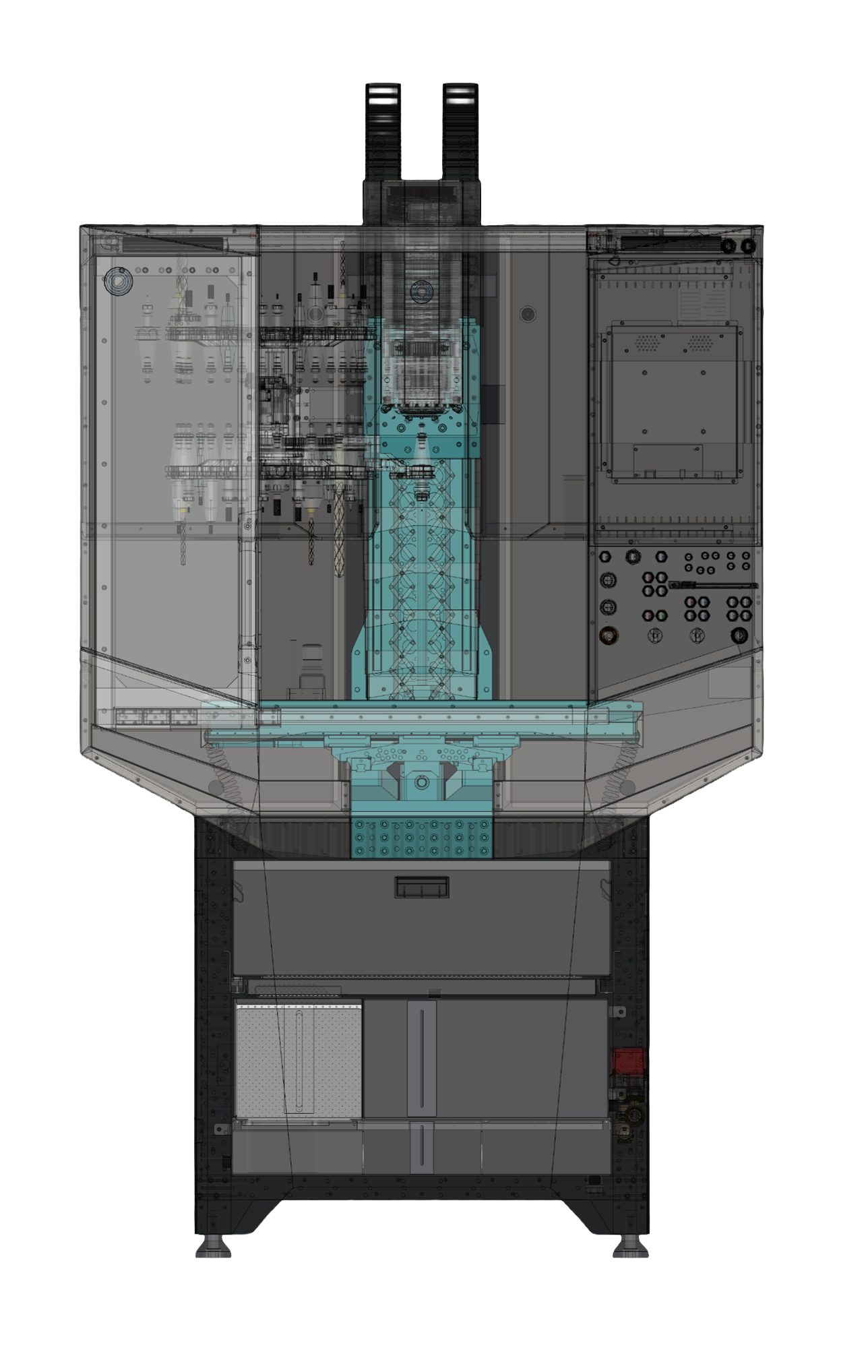

Engineered for every detail
Hover to explore
Samurai MT Exceed ISO230 Standards
Every Samurai 220H is shipped with a full inspection report containing geometric alignment test results, linear positioning and ball bar verification.
We don't shim machines into perfection, we close the feedback loop from machine inspection to manufacturing ensuring the machines are manufactured correctly from the start.
Our tolerances exceed the typical requirement for a #40 taper machine tool, and are in a different league to any similarly sized machine.
You can rely on the 220H to produce parts with micron precision.
View Full Report
The Pinnacle of Machine Tool Quality
Our machines feature THK and NSK components to provide the highest possible quality.

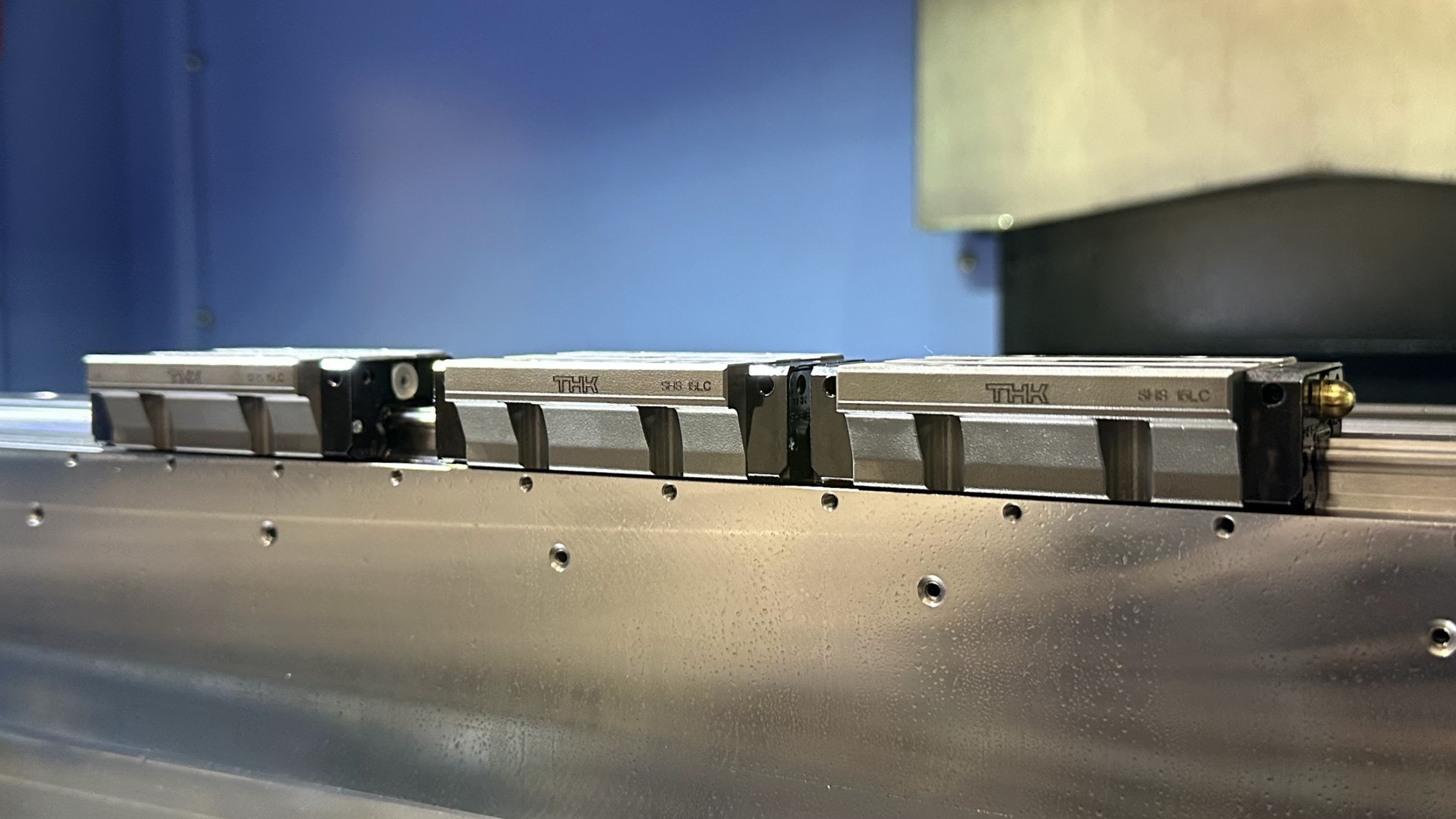

The THK Caged Ball LM Guides provide smooth operation at high speed and increased service life of the linear rail. Precision ground C3 Ballscrews capable of 5000 RPM enable high rapid and feed speeds without compromising on durability.
The NSK P3 Super precision ballscrew supports and spindle bearings enable the highly rigid feed drive system, and ensure highest durability of the spindle.
Engineered with Industry Standard Simulation

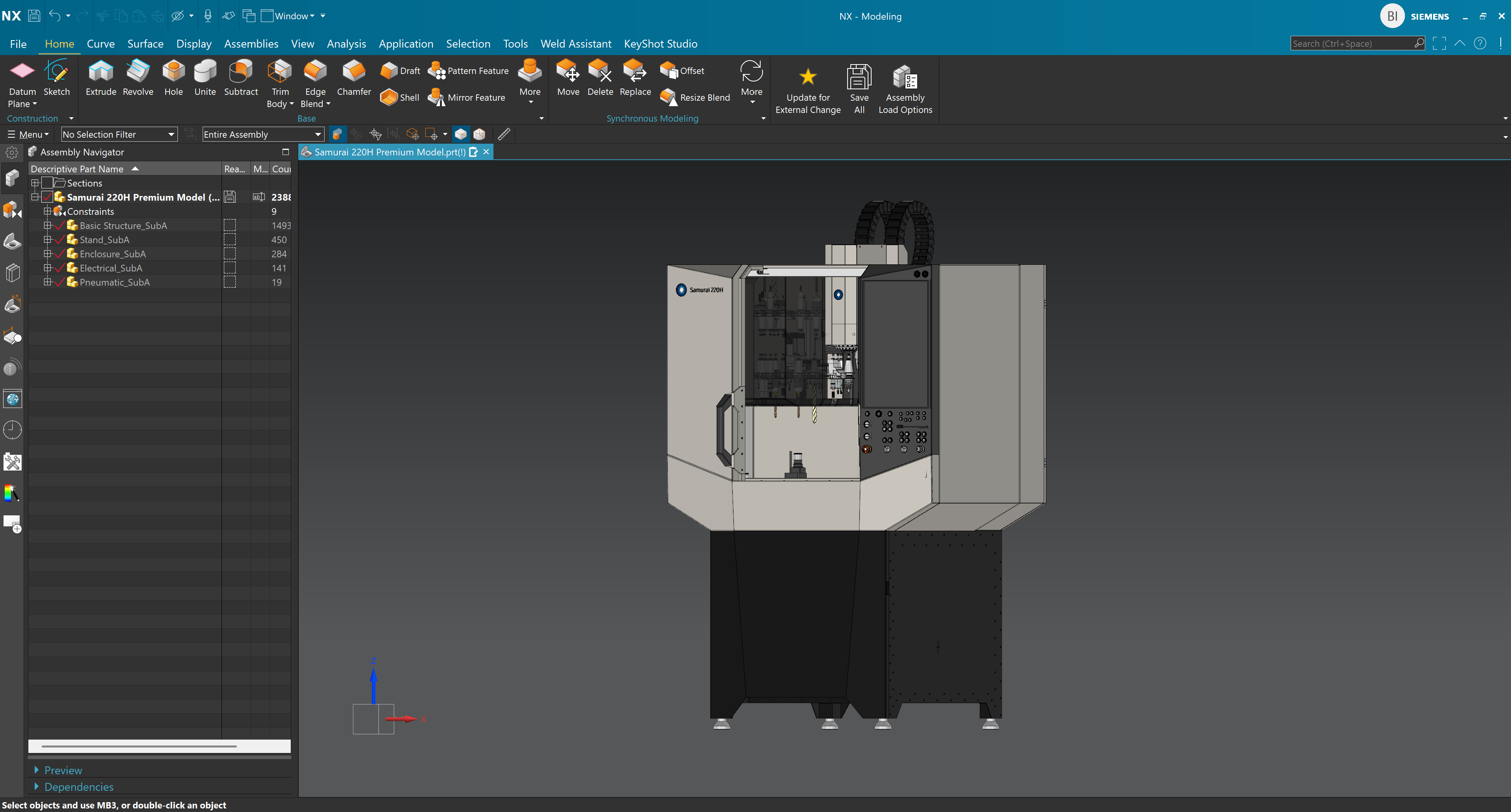

The Samurai 220H was designed entirely in Siemens NX — the industrial CAD platform trusted by many to develop world leading products.

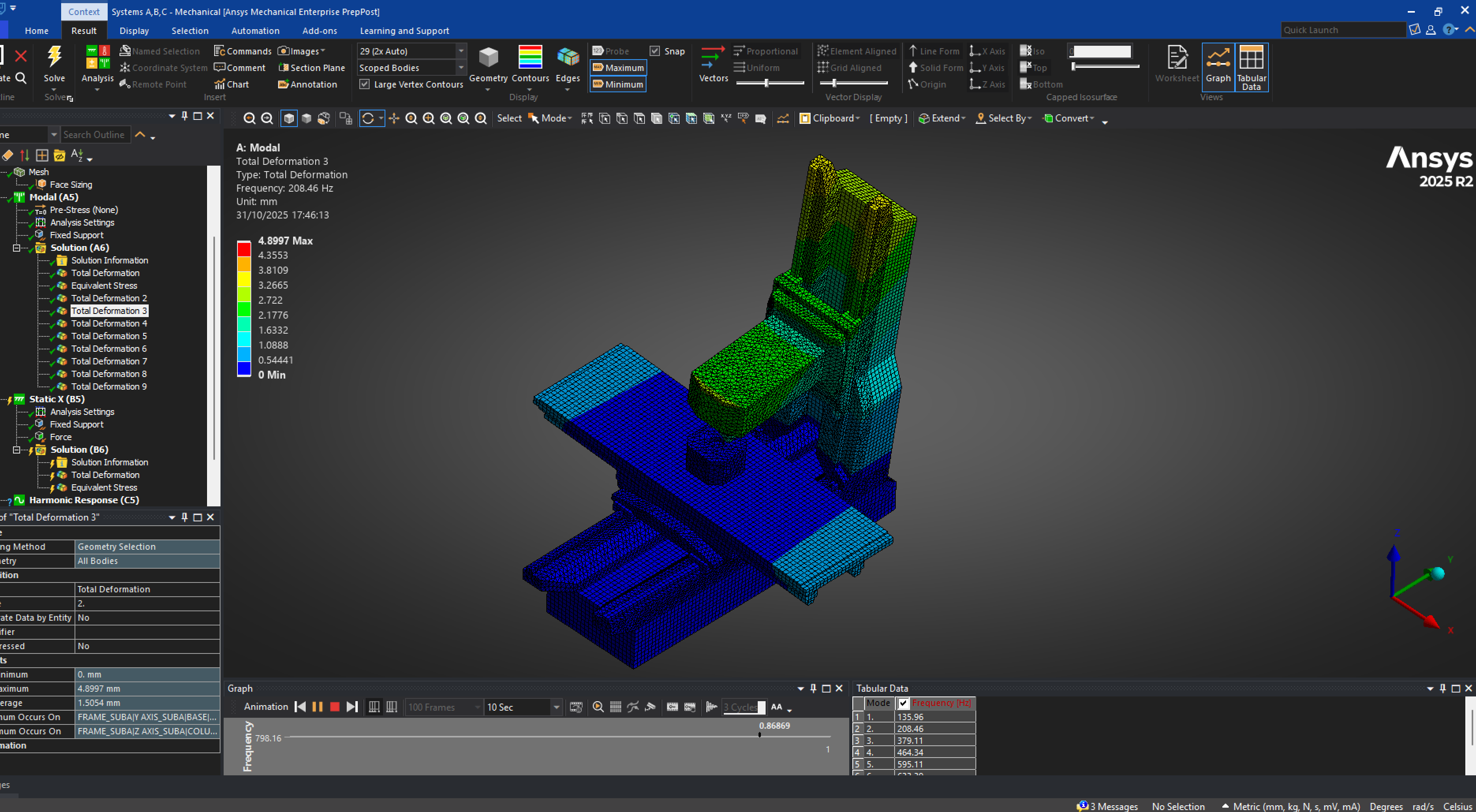

The Samurai Steel® frames dynamic rigidity and ATC components fatigue life were optimised during the design phase through ANSYS simulation software.
You can trust the performance and durability of the 220H to exceed expectations.
Rethink your Shop Layout for Maximum Output
Space for machinist/robots and to remove machines for access.
Self levelling machine feet for ease of installation.
Thick metal enclosures and shielded cables to minimise EMI.
Make your Competitors Obsolete with the Samurai Army
Your CurrentYour Future Potential
£71K
Revenue Per m²
1,000,000
Parts Produced Per Year
1 Years
Coolant Maintenance Period
